KPL voltage regulator is two patented products of Jinbao power supply, with the most professional talents and leading technology research and development and production of an industrial three-phase automatic AC voltage regulator, with noble and novel process appearance, stable and reliable design principle, humanized voltage regulator system and installation panel, durable quality, intuitive and convenient installation and operation. It is widely used by entrepreneurs in the import of precision equipment, textile equipment, medical equipment, laser equipment, woodworking equipment, aviation equipment, printing equipment and other fields.
Product parameters:
|
Stable voltage range
|
380V±15% (or customized)
|
Seismic resistance factor
|
0.3 G
|
|
Output accuracy
|
380V±1%
|
Climbing distance
|
> 8mm
|
|
Operating frequency
|
50/60Hz
|
Ground resistance
|
0.1 or less Ω
|
|
Usage efficiency
|
98% or higher
|
Coil temperature
|
Class H 180℃
|
|
Application time
|
< 0.05min
|
Insulation resistance
|
Coil to ground ≥100MΩ
|
|
Overload capacity
|
150% (60min) 300% (10min)
|
Cooling method
|
Air cooled forced heat dissipation
|
|
Waveform distortion
|
The sine wave is undistorted
|
Equipment noise
|
Full load ≤55dB (1M away from the device)
|
|
Working environment
|
Temperature (-20℃~60℃) Humidity (0~90%)
|
Insulation voltage
|
Coil to conductor 2500V 60S(≤10Ma)
|
Structural features:
1, panel instrument design
The panel is a counter voltmeter display for easy visual observation and accurate reading.
2, over capacity, overload capacity
This product can be used continuously at 00% load, and can withstand inductive transient load without causing voltage drop, damaging the equipment and reducing the service life.
3, separate voltage regulator design
When the input three-phase unbalanced, heavy load or nonlinear power supply, the regulator can still maintain the output three-phase voltage balance to ensure the output voltage pure and accurate.
4, adapt to harsh environment
The internal components are fully modular design, all components are composed of efficient and wide range of safe industrial grade parts, which can withstand harsh temperature, humidity, vibration and dirty environment.
5, protection function
The voltage regulator is equipped with an independent circuit to detect the output voltage is too low and too high. The upper and lower limits can be set according to the load characteristics of the equipment. When the output voltage is too low or too high, the voltage regulator will automatically cut off the output power to protect the load.
6, phase box safety design
The panel display function is concealed, which can prevent damage to the display panel due to collision during transportation. The air beginning is concealed to avoid the traditional air beginning is exposed to the outside of the chassis, resulting in online power failure or damage to the load device due to careless touch of the switch.
7, output automatic delay function
When the power is turned on or the power is interrupted, the voltage regulator will be stabilized and then output to ensure that no high voltage output will be generated under any circumstances to protect the load equipment from damage.
8, beautiful and practical appearance
The chassis is made of high toughness stainless steel plate, CNC sheet metal processing, beautiful appearance, environmental protection concept, small footprint, movable with brake casters, easy to move installation.

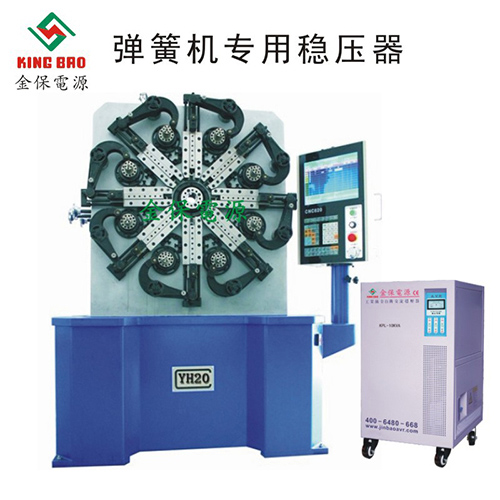

Supporting Case:
