Limit the voltage drop on the grid side when inverter and converter are commutated, suppress harmonics and decoupling of parallel converter banks; Limit the jump in grid voltage or the current shock generated by the operation of the grid system.
It is used to passivate the steepness of the output voltage switching frequency of the inverter, adjust the load reactance of the power grid, and improve the power factor.
Limit the short circuit current, but also can contain the harmonics of the line.

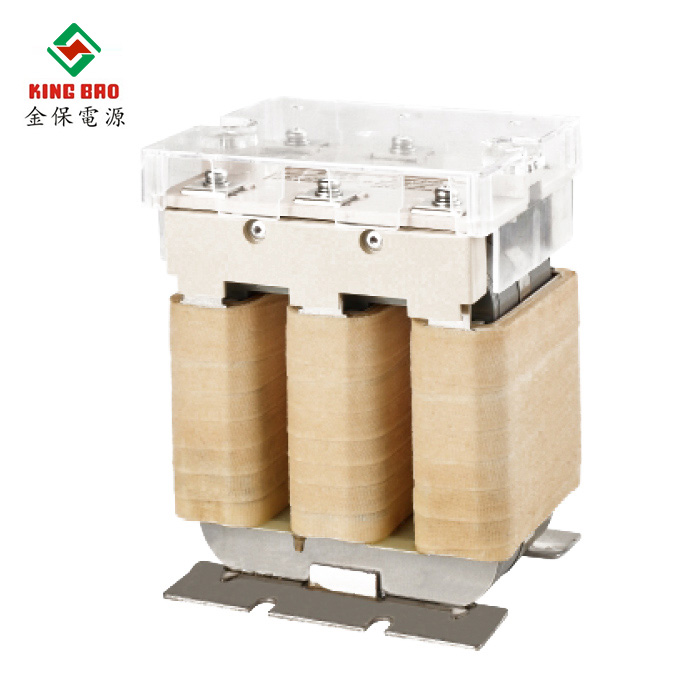

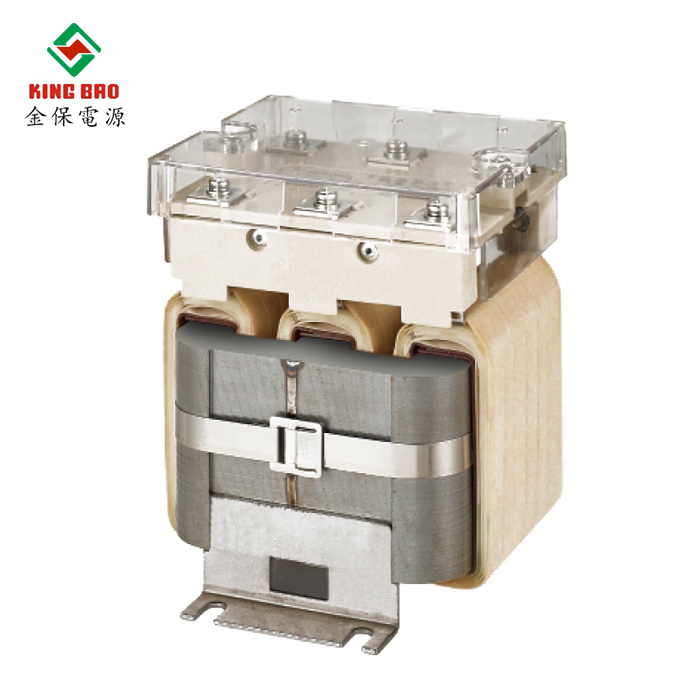

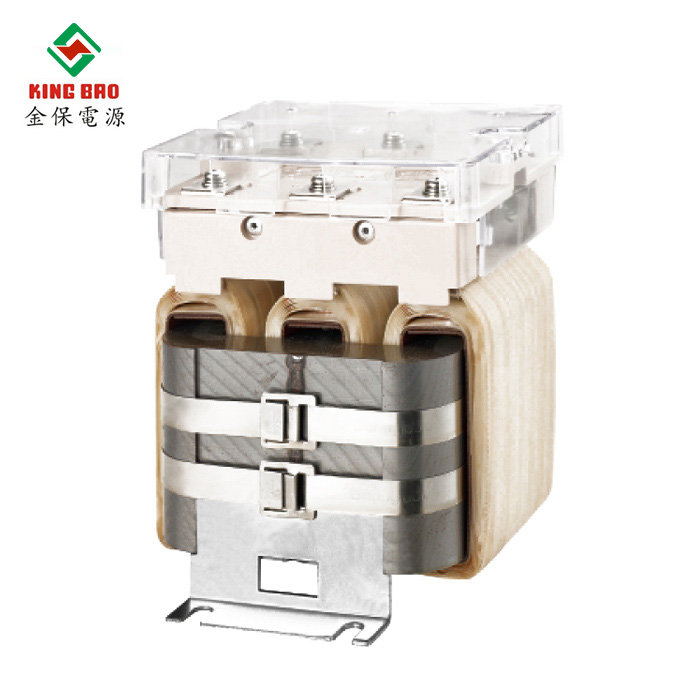

The company adopts high-performance foil winding structure for this product, which has small DC resistance, strong short-circuit resistance and large short-time overload capacity; The use of high performance F class and above composite insulation materials, so that the product can still maintain in harsh working conditions Rely on the performance; The reactor design has low flux density, good linearity, strong overload energy capacity, and vacuum pressure coating process. The core adopts high-quality and low loss cold rolled silicon steel sheet, which has low reactor loss, low noise and high efficiency. At the same time, it has small size and compact structure Reasonable design, easy installation and so on.
